Screed carrier PRIOMIX Pragma CL

PRIOMIX Pragma CL

New product


Machine for pumping fluid screeds, mortars and micro concretes:

KUBOTA 4 cylinder engine - Hydraulic pump with variable flow to soft start - Radio multifunction control (start and stop pumping, flow variation, reverse, and emergency stop) - Cleaner HP 170 bar - pumping rate up to 18M 3 / hour - optional air Compressor

French made
Manufacturer: Transmanut
Brand: Priomix

More details


CONTACT US

Our customer service is available Monday to Friday from 9 A.M to 12 P.M and from 2 P.M to 5 P.M

Phone : +33 (0) 5 46 45 35 96

Contact us




The Pragma CL has been designed to facilitate the pumping operations of fluids and mortar screeds and offers remarkable performance considering its price level.

malaxage-pragma12s.JPGEngine

• KUBOTA D 1505 4 cylinder liquid cooling used at 2600 rev / min, power 26 Kw

Manual acceleration of the diesel engine to adjust the power delivered to the site conditions.


pragma-cl-transmission.JPGHydraulic transmission with variable flow

Soft start pumping to avoid jolts and constraints on the coupling parts.


pragma-cl-commande.JPGThe control panel

The control panel is simple and practical:

ignition switch, pump pressure gauge, setup button for the buzzer, Start button pumping in forward and reverse, pumping speed variation and control of the cleaner.

All pump controls can be operated remotely using the remote control.

Pragma The CL is the only machine to enable remote reverse.


The receiving hopper


Very large and sloping to avoid the risk of overflow in the router spill.

The vibrating screen with bars covering the entire hopper and allows a good flow of the screed even fibered, a power cylinder can raise the effortless to access the hopper.

The hopper bottom is stainless steel, high aluminum part is coated with a high quality paint slipping of the product.

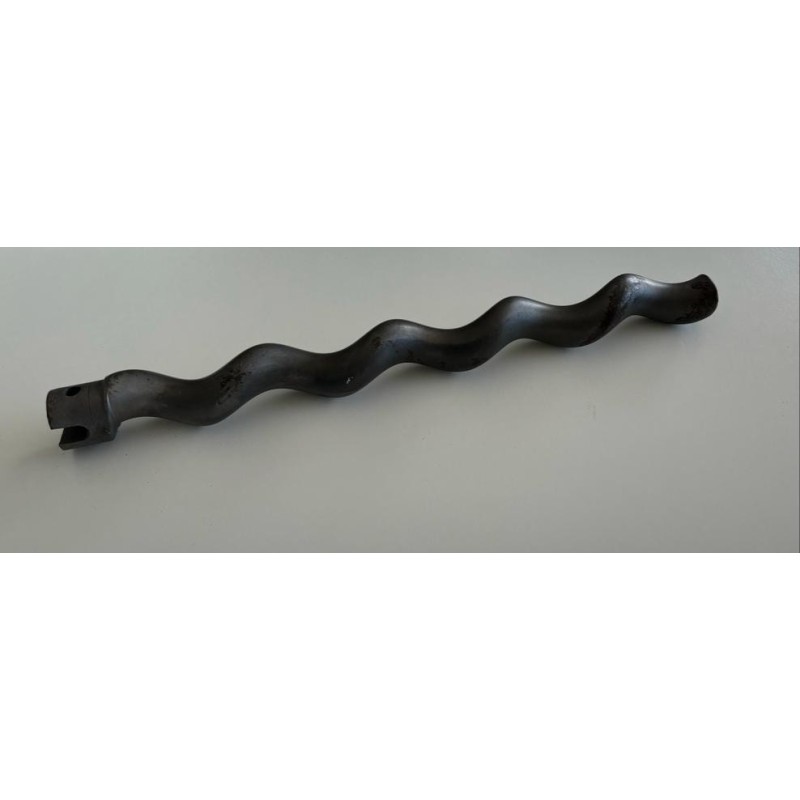

The screw shaft at the hopper bottom improves the feeding pump and comprises two reinforced flectors for coupling the rotor.



Adjustable pump speed from 0 to 360 rev / min, pump pressure up to 30 bar.

Pump casing 60.12 with a theoretical speed up to 300 liters per minute.


pragma-transport-tuyaux.JPGTransport pipes

The machine can carry 30 ml of piping in the storage basket.



A pressure washer powerful series !

Enables rapid cleaning of the machine and tools after work, it can also be used for pumping.

Flexible 10ml comes with the machine as well as launching two jets.

(Rotating nozzle and additional piping optional).


Positioning in the machine ensures the automatic emptying of the water circuit to avoid freezing in winter conditions.



Air compressor hydraulic drive optional !

• Adjustable Air Flow


Very handy for the drain pipe, it allows the re-aspiration of the product machine.


Full accessibility to mechanical parts !

une-machine-sans-electronique-pragma12s.

New engine casing, complete access to filter elements to promote the maintenance and reduce response times.

Fuel tank capacity 30 liters directly accessible from the cover open as the battery.

The polyester cover can be removed in minutes for total access to the engine compartment.



Galvanized road chassisroue-jockey-pragma12s.JPG

Galvanized tubular chassis approved UTAC, 1100 Kgs road axle, drawbar T and large wheels (165/80/13) give the machine exceptional driving qualities, Approved to 130 km / h.

The less than 750 kgs weight allows the tow unlicensed Eb.
The lights are protected by the body, very resistant coiled cord allows their connection to the tractor.

• The jack castor wheel allows easy attachment to one man.

• The crutches in the back and in the front stabilize the machine during operation.


Surface treatment of steel components

• Blasting
• Metallization by galvanizing
• Epoxy paint

Brand Priomix
Manufacturer Transmanut
Engine D1505 4-cylinder, Liquid cooling, 24 kW to 2500 t/mn
Driving Variable flow hydraulics, Soft start
Performance / Debit rotor stator flow 60.12, 0 to 300 liters / mn*
Max pressure pumping 25 bars
Backflow Height 40 meters*, Length 100 meters*
Granulometry max 10 mm
Radio control multi-fontion Serie
Compressor Option
Pressure washer 170 bars, 11 liters/mn
Mixer capacity 260 liters, 12 bags
Hopper Capacity 280 liters
Hydraulic Tank Capacity 35 liters
Fuel tank Capacity 30 liters
Weight 720 kg
Dimensions L : 3000 l : 1400 h : 1200
Filling height 0 m 95
Road equipments Unbraked axle, Jockey wheel, Approval road 130 km / h, Lights integrated into the rear panel, Crutches front / rear
Standard equipment Hand throttle, Pressure gauge, Grease + cartridge , 12 volt electric vibrating screen CL, Water supply, water dispenser with additional tap
Optional equipments Theft of drawbar
Information with asterisk * * Depends on the pumpability of the product, adjustment and wear of the pump housing; for reference, the distances pumping are not cumulative.
