PRIOMIX Pragma 12 S K
Machine for traditional projection and monolayer coatings :
Unmatched capabilities. A hydraulic compressor without belt. full accessibility to mechanical components. traditional design
without any electronic components. Thought by professionals for professionals. Reliability and longevity.
This product is no longer in stock
Warning: Last items in stock!
Preparation of mortar easily (from 2 to 12 bags together).
Mixer capacity up to 12 bags per batch (depending on product density): saving time compared to a conventional machine that can mix a max from 6 to 8 bags, the operator spends less time at the machine.
Water metering with automatic stop on the mixer, water pump with stainless steel jets directed on the mixing shaft.
Bar grating on the mixer or protective cover against dust emissions with optimized product descent through the shaker grate.
Optional: suction and dust collection system (patent pending)
The opening direction of the mixer grid will delete the entire proceeds of the last blighted, thus limiting losses of material.
• Forward and reverse on the mixer.
• Ability to mix to the engine idle speed.
• Hydrowash system for an almost automatic cleaning of the tank.
Photo: lifting cylinder in a central position and taken on the chassis.
Large hopper steep reception: capacity of 16 bags, the steep slope allows complete emptying without adhesion of the product on the walls.
The hopper bottom is stainless steel, high aluminum part is coated with a high quality paint promoting the flow of the product.
The hopper safety grid is optimized to cause minimum discomfort to the user and allows the agitation of the product without stop pumping.
The screw shaft at the hopper bottom improves the feeding of the pump and has two coupling flectors.
adjustable pump speed from 0 to 300 rev / min, pump pressure up to 30 bar.
Pump housing series 2L6 or 2L6 +++ with a theoretical speed up to 100 liters per minute.
pumping facility of traditional mortars.
Photo: vibrating screen is optional.
170 bar, 11 liters / min variable flow and pressure from the dashboard to adjust the strength of the jet to the area to be cleaned avoiding splashing and rain gear!

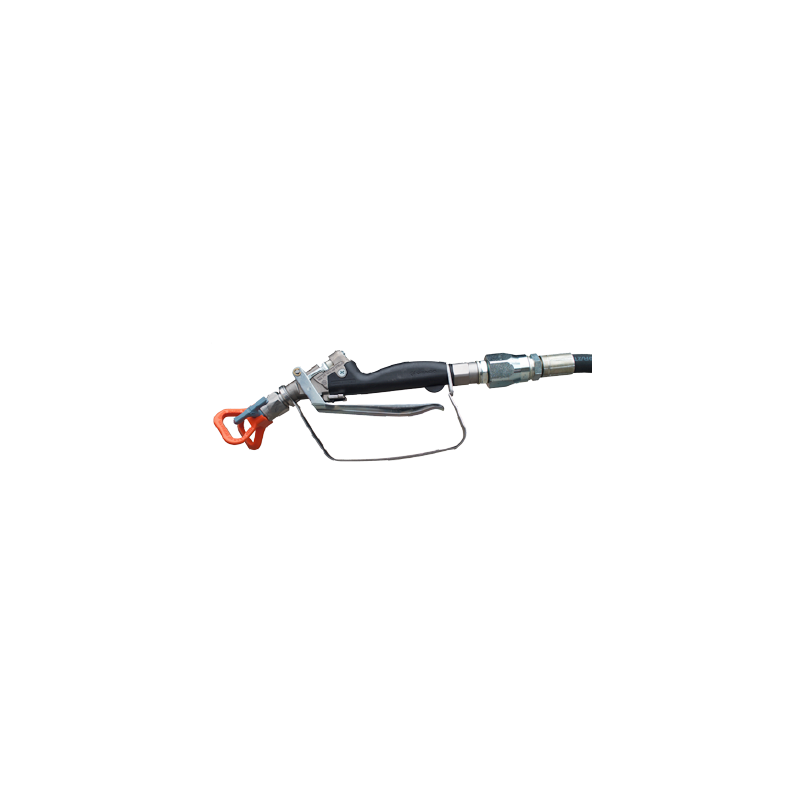

Not only quick cleaning of the machine after work, but also to clean the facades. Flexible 10ml comes with the machine as well as launching two jets (rotating nozzle and additional piping optional).
Positioning in the machine ensures the automatic emptying of the water circuit to avoid freezing in winter conditions.
No electronic board controller in the machine !
The safety devices are managed through relays and fuses !
All controls on the dashboard are mechanical :
• A hydraulic distributor for each function.
• Hydraulic speed drive.
• Operation diagnosis dash by an LED.
• Pressure gauge of pumping and mixing pressures.
• Scoreboard protected by a lockable cap.
• Use the 4 functions can simultaneously!
• Pumping, HP cleaning, mixing and pumping can be used at any time! Practice in the cleaning phase of the machine!
For reliability, the compressor is driven by hydraulics.
More belt slipping or breakage during projection! The pneumatic circuit is equipped with a venting air valve that can significantly extend the life of the compressor by resting during the downtime of the projection.
It is cooled by a broken pulley.
New engine casing, complete access to filter elements to promote the maintenance and reduce response times.
Fuel tank capacity 30 liters directly accessible from the opening of the cover and the battery.
The polyester cover can be removed in minutes for total access to the engine compartment.
• Kubota D1105 3-cylinder liquid cooled.
The idling of the diesel engine is automatic stopping the projection for a more economical operation.
Galvanized tubular chassis approved UTAC, 1100 Kgs road axle, drawbar T and large wheels (165/80/13) give the machine exceptional driving qualities, Approved to 130 km / h.
The less than 750 kgs weight allows the tow unlicensed Eb.
The lights are protected by the body, very resistant coiled cord allows their connection to the tractor.
The jack castor wheel allows easy attachment to one man.
Crutches in the back and in the front stabilize the machine during operation.
• Metallization by galvanizing
• Epoxy paint
|Type of product||Machines for coatings|
|Engine||D 1105 3 cylinders, Liquid cooling, 18 kW to 2500 t /mn|
|Performance / Debit||Rotor stator flow 2L6, 0 to 60 liters / mn*, Rotor stator flow 2L6 +++, 0 to 100 liters /mn*|
|Max pressure pumping||30 bars|
|Backflow||Height 40 meters*, Length 80 meters *|
|Granulometry max||6 mm (8 mm +++)|
|Mixer capacity||260 liters, 12 bags|
|Hopper Capacity||280 liters|
|Hydraulic Tank Capacity||35 liters|
|Fuel tank Capacity||30 liters|
|Dimensions||L : 3000 l : 1400 h : 1200|
|Filling height||0 m 95|
|Road equipments||Unbraked axle, Jockey wheel, Approval road 130 km / h, Lights integrated into the rear panel, Crutches front / rear|
|Standard equipment||Pressure gauge, Grease + cartridge , Bars mixer grid, Water supply, water dispenser with additional tap|
|Optional equipments||Anti vibrating dust hood, Theft of drawbar, 12v electric vibrating screen, Aspiration and dust collection|
|Information with asterisk *||* Depends on the pumpability of the product, adjustment and wear of the pump housing; for reference, the distances pumping are not cumulative.|
